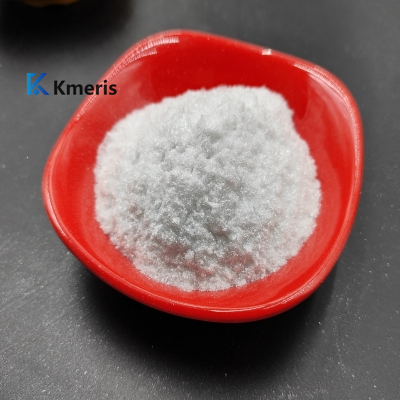

Glass flake chip has a wide range of applications, and has been improved in barrier, reinforcement and thermal performance.Glass flake ba
| Chemical Analysis | |
| SiO2 | 64-70% |
| K2O | 0-3% |
| B2O3 | 3-8% |
| ZnO | 0-5% |
| Na2O | 10-15% |
| MgO | 3-8% |
| CaO | 5-7% |
| Al2O3 | 3-10% |
| TiO2 | 0-3% |
| Physical Properties | |
| Apparent Density | 1.35 |
| (H2O=1) | |
| Real Density | 2.60 |
| (H2O=1) | |
| Softening Temperature | 680℃ |
| DIM 52324 | |
| Melt Temperature | 930-1020℃ |
| (molten - flow) | |
| Refractive Index | 1.52 |
| Particle Size Distribution | |
| 450 μm -300μm | 10% or less |
| 300 μm -45µm | 65% or more |
| ＜45µm | 25% or less |
| Thickness |
| The nominal thickness of the glass is Av.5±2 microns, can be customized. |
| Surface coatings |
|
Glass flake materials are offered with the option of surface pre-treatment with a range of silane silane coupling agents, listed below (typically 0.8-1.2%wt) : |
|
3-Aminopropyltriethoxy Silane Vinyl trimethoxy Silane γ-Glycidoxypropyltrimethoxy Silane Methacryloxypropyltrimethoxy Silane |
NCF-160 is packed in 20kg (net.) composite Kraft paper bags.
Bulk shipments are further packed in pallet boxes containing 50 sacks 1000kg net.
